Taxonomy Plugin Extra Taxonomy Field in Document Type
Add an extra taxonomy picker to a document type
In order to add an extra, second taxonomy picker to a document type, the following steps have to be taken:
- Configure a second taxonomy DAO service with a differently configured MixinClassificationDaoPlugin
- Add an additional plugin context to your template that uses that service
Add a second taxonomy DAO service using the MixinClassificationDaoPlugin
The class org.onehippo.taxonomy.plugin.MixinClassificationDaoPlugin has a configuration property fieldPath. The value of that property is the name of the property where the additional taxonomy keys are stored.
For document types using the service service.taxonomy.dao.alternate in their template, the alternate taxonomy keys will be stored in a property called taxonomydemo:alternatekeys.
/alternateClassificationDaoService: jcr:primaryType: frontend:plugin fieldPath: myproject:alternatekeys plugin.class: org.onehippo.taxonomy.plugin.MixinClassificationDaoPlugin taxonomy.classification.dao: service.taxonomy.dao.alternate
Additional taxonomy fields need to be configured through the CMS Console.
To add the service to your configuration:
- In the Console, go to /hippo:configuration/hippo:frontend/cms/cms-services.
- Create a structure like above, perhaps by copying the existing classificationDaoService and add property fieldPath with the wanted property name.
- Write changes to repository.
Make sure that this change is recorded in your project's bootstrap resource, such that it will become available in other environments as well!
Add an additional plugin context to your template that uses that service
The following description is based on a document type doubletaxonomy with one taxonomy. The namespaceprefix of the project is taxonomydemo. While the document type still has a single taxonomy field only, its editor templates structure looks like:
To add an extra taxonomy field, add the following configuration to the editor:templates/_default_ node
/extrataxonomy:
jcr:primaryType: frontend:plugin
plugin.class: org.onehippo.taxonomy.plugin.TaxonomyPickerPlugin
taxonomy.classification.dao: service.taxonomy.dao.alternate
taxonomy.id: service.taxonomy
taxonomy.name: exampletaxonomy
wicket.id: ${cluster.id}.left.item
field: extrataxonomy
Next add the following configuration to the hipposysedit:nodetype/hipposysedit:nodetype node
/extrataxonomy: jcr:primaryType: hipposysedit:field hipposysedit:multiple: true hipposysedit:path: myproject:alternatekeys hipposysedit:type: String
The following properties should be set to match your requirements:
| Property name | Description |
|---|---|
| taxonomy.classification.dao | The name of the DAO service that is used. |
| taxonomy.name | The name of the taxonomy to use. |
| wicket.id | The layout part where the additional taxonomy will be placed (e.g. '${cluster.id}.left.item' for left column) |
To add the template plugin to your document type:
- In the Console, import the above xml (the edited frontend:plugin) at /hippo:namespaces/[yournamespace]/[yourdocumenttype]/editor:templates/_default_
- Write changes to repository
- To view the changes in the cms log in again, the services will be reloaded
Again, make sure that this change is recorded in your project's bootstrap resource, such that it will become available in other environments as well.
Labels for the classifiable and extrataxonomy fields can be provided by adding configuration under /hippo:configuration/hippo:translations/hippo:types/[yourdocumenttype]/ as explained in internationalization of field captions.

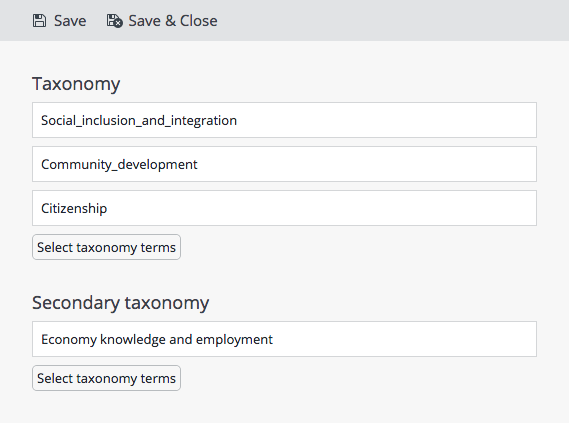

Your document type should now look like this:
Wrapping up
Test your configuration:
- Create a new document of the adjusted document type
- Select taxonomy items for each taxonomy picker
- Save the document
- In the console, make sure all the taxonomy keys are stored in the right location. The following query should return all documents that have both properties: //element(*,taxonomydemo:doubletaxonomy)/[@hippotaxonomy:keys and @taxonomydemo:alternatekeys]
Existing documents do not yet have the new property, nor has it been added to the prototype. hippotaxonomy:classifiable can be added to your document type in the CND. The new property has not been defined by a mixin.
