Configuring the Translations Add-on

Bloomreach offers Enterprise support for this feature to Bloomreach Experience customers. The release cycle of this feature may differ from our core product release cycle.
Using this feature requires an additional license. Please contact your account manager or sales person for more information.

The Translations Add-on uses main configurations in three locations of the repository:

Also there are some parts installed on behalf of the UI, see User Interface Configurations.

After installation, please run by these configurations and change them to the project's requirements. Normally, changes from the defaults should be propagated from the local development environment to the various environments you have, using the bootstrapping mechanism. Manual reconfiguration of your environment is also an option.

Settings

The configuration regarding your projects supported languages and document types resides here in the repository.

/translationsaddon:configuration/

Project namespace

The first thing that needs to be configured is to make the add-on aware of your project's namespace. To do this, open the CMS console and set this property:

/translationsaddon:configuration/namespaces/value={"namespaces":["yournamespace"]}

The configuration value is a JSON object holding an array of your project's namespaces. The property "value" type String. Multiple namespaces are possible, using comma separation between multiple quoted values.

Enabled languages, document types and fields

In Experience Manager 14.0, as admin, use Control Panel > Manage Settings, translations tab for the remaining settings. Usage of the Settings Management plugin is recommended, but not mandatory.

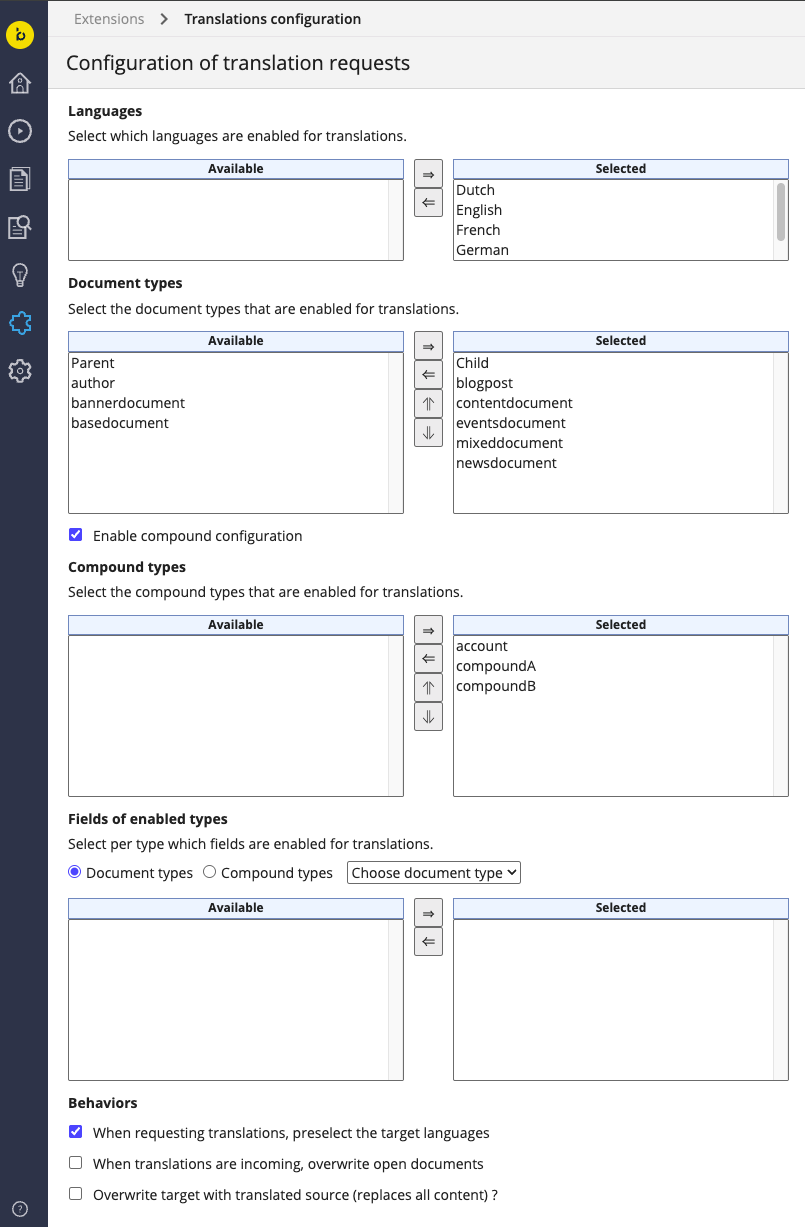

In higher Experience Manager 14.x, from addon version 5.8.0+, as admin, use Extensions > Translations configuration, for the remaining settings.

  • In the "Languages" section, select the languages that documents can be translated to. The section contains the available CMS languages from the localeProviderService.
  • In the "Document types" section, select the document types you wish to create translations for.
  • Since 5.8.0: Selecting the checkbox "Enable compound configuration" will show an additional "Compound types" section, where it is possible to select the compound types that are enabled for translations, i.e. that are part of the documents that are sent to be translated.
  • In the "Fields of enabled types" section, select per enabled document type (or, since 5.8.0, per compound type) the fields that are enabled for translations. Read more about which fields to enable for translation.
  • In the "Behaviors" section, select or deselect the wanted behaviors.

Please note: Compound fields can only be enabled or disabled as a whole, so not at the individual subfield level. This also goes for fields using the Content Blocks plugin.

Content root specific languages

Since 5.9.0, there is support for content root specific language settings. Using console, subnodes of /translationsaddon:configuration/languages can be added to specify the enabled languages for specific content roots. The enabled languages in the Configuration Perspecive are the default ones. The values of the subconfigurations must subsets of that default. For example:

/translationsaddon:configuration/languages:
  jcr:primaryType: translationsaddon:configuration
  value: '{"languages":["nl","en","fr","de","en_GB"]}'
  /fr-translationsaddondemo:
    jcr:primaryType: translationsaddon:configuration
    value: '{"languages":["nl","en"]}'
  /translationsaddondemo:
    jcr:primaryType: translationsaddon:configuration
    value: '{"languages":["nl","fr","de"]}'

Services daemon with the connector

If you are installing a connector in the project, you must configure a services daemon. The services daemon can create one or more services. It may be found at this location in the repository:

/hippo:configuration/hippo:modules/translation-services-daemon/hippo:moduleconfig

All subnodes represent services that are instantiated by the daemon. The ones that need project-specific configuration are the connectors, in subnodes starting with the name translationsaddon:connector.

For detailed configuration, see the LiveWords connector, the GlobalLink connector or the Tester connector.

Environment specific connector configurations

It is possible to set up environment specific configurations for the services, most notably for the connector. It means that if repository data has moved from the production environment to another environment,  no adjustments need to be made on the target environment configuration.

The daemon determines a system property name by the  environment.system.property property from above daemon configuration node, defaulting to hippo.environment. If a system property by that name exists, its value will point to an optional subnode of the service configuration, of type hipposys:moduleconfig, which may contain overriding configuration properties.

For instance, if -Dhippo.environment=production, the following Livewords set up will connect to a live Livewords API only on production. Other environments will connect to the test Livewords API.

/hippo:configuration/hippo:modules/translation-services-daemon/hippo:moduleconfig
             translationsaddon:connector/livewords.api.url=https://test.api.livewords.com
             translationsaddon:connector/production/livewords.api.url=https://live.api.livewords.com

Scheduler jobs

The configuration regarding two scheduler jobs resides here in the repository:

/hippo:configuration/hippo:modules/scheduler/hippo:moduleconfig/translationsaddon/

TranslationJobStoreCleaner

In the subnode TranslationJobStoreCleanup a scheduler job is configured that removes completed or archived translation jobs of a certain age from the job store at /translationsaddon:jobs containing translation requests. There are its settings:

Path below TranslationJobStoreCleanup Default value  Description

hipposched:attributeValues[1]

365

Value for hipposched:attributeNames/daysToLive, defining the age, in days, of translation jobs that will be deleted.

hipposched:attributeValues[2] 100

Value for hipposched:attributeNames/batchSize, defining the size of a batch of job deletions that is saved in an iteration until all are deleted.

hipposched:attributeValues[3]

1000

Value for hipposched:attributeNames/searchLimit, defining the limit given to the query that searches for the jobs.

hipposched:triggers/nightly/hipposched:enabled true Enables the nightly trigger.
hipposched:triggers/nightly/hipposched:cronExpression 0 0 5 1/1 * ? * Trigger expression for the nightly cleanup, set at 5 AM.

TranslationResultsProcessor

In the subnode TranslationResultsProcessor a job is configured that polls for ready translations in the external system. There are these settings:

Path below TranslationResultsProcessor Default value  Description
hipposched:triggers/every-minute/hipposched:enabled false Enables the every-minute trigger.
Please do enable when using the GlobalLink and Star connector!
hipposched:triggers/every-minute/hipposched:cronExpression 0 0/1 * * * ? Trigger expression for the processor, set at every minute.

RetryTranslationRequests

In the subnode RetryTranslationRequests a job is configured that searches for translation requests that failed to be sent to the external system, then tries to resend them. There are these settings:

Path below RetryTranslationRequests Default value  Description
hipposched:triggers/minutes/hipposched:enabled false Enables the trigger.
hipposched:triggers/minutes/hipposched:cronExpression 0 0/3 * * * ? Trigger expression for the processor, set at every 3 minutes by default.
hipposched:attributeValues[1] 5 Value for hipposched:attributeNames/maxRetry, indicating the maximum number of times a translation request will be tried to resend.

User Interface Configurations

Configurations regarding the editor UI reside at:

/hippo:configuration/hippo:workflows/translations-workflow
/hippo:configuration/hippo:frontend/cms/cms-preview/workflowPlugin/workflow.categories=translations-workflow

Configurations regarding the search UI reside at:

/hippo:configuration/hippo:workflows/translations-workflow
/hippo:configuration/hippo:frontend/cms/cms-advanced-search/workflowPlugin/workflow.categories=collection-translations-workflow

Configuration regarding the dashboard UI resides at:

/hippo:configuration/hippo:frontend/cms/cms-static/translations
 // number of items shown on the page
 - (Long) panel.pagesize=12
