Discovery Document Types and Pickers

CMS Document Types & Pickers

The plugin's components are configured by pointing them at small JCR documents - a product, a category, or a recommendation widget - rather than by typing IDs into text fields. Every one of these documents is created and edited through an Open UI picker or wizard embedded directly in the document editor, so editors never need to know a Discovery product ID or category ID by heart.

All picker and wizard traffic goes through a CMS-side REST endpoint, not directly to the Discovery API - so Discovery credentials are never exposed to the editor's browser.

ON THIS PAGE

• Document types
• Product & category wizards - Dynamic vs. Pinned
• The product picker
• The category picker
• Live preview fields
• Adding a picker to your own document type
• Troubleshooting

Document types

The recommendation wizard is covered in Recommendations & Visual Search. This page covers the product and category document wizards and the underlying picker components they're built on.

Product & category wizards - Dynamic vs. Pinned

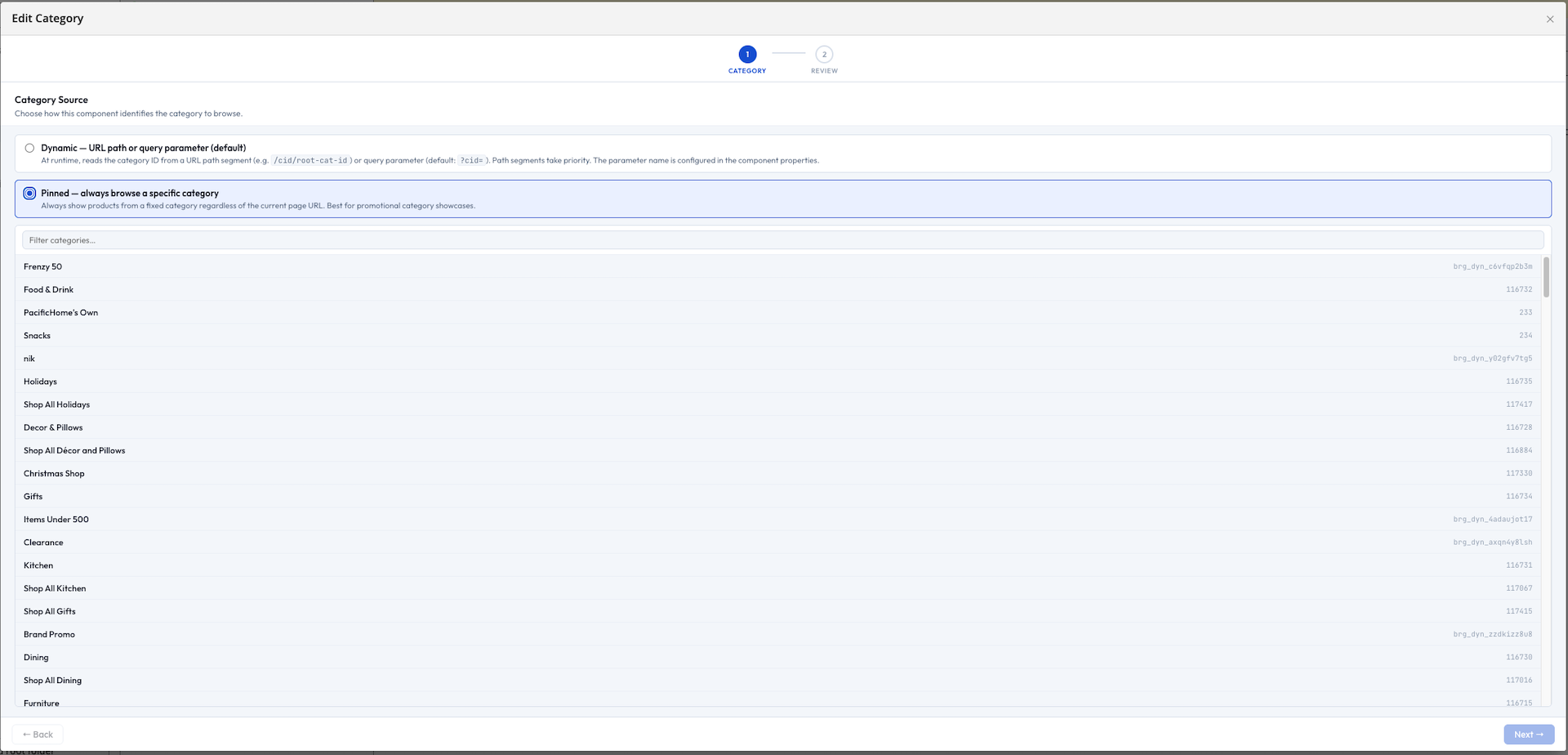

Both the product wizard and the category wizard present the same two-step flow with the same choice:

• Dynamic - the component reads the ID from the URL at render time (?pid= for products, a /category/{slug}/cid/{id} path segment or ?cid= for categories). No specific item is stored in the document. Use this for template pages that render whatever product or category the visitor is currently viewing.
• Pinned - the editor searches for and selects one specific product or category. That selection is fixed regardless of the URL. Use this for merchandising slots that should always show the same thing.

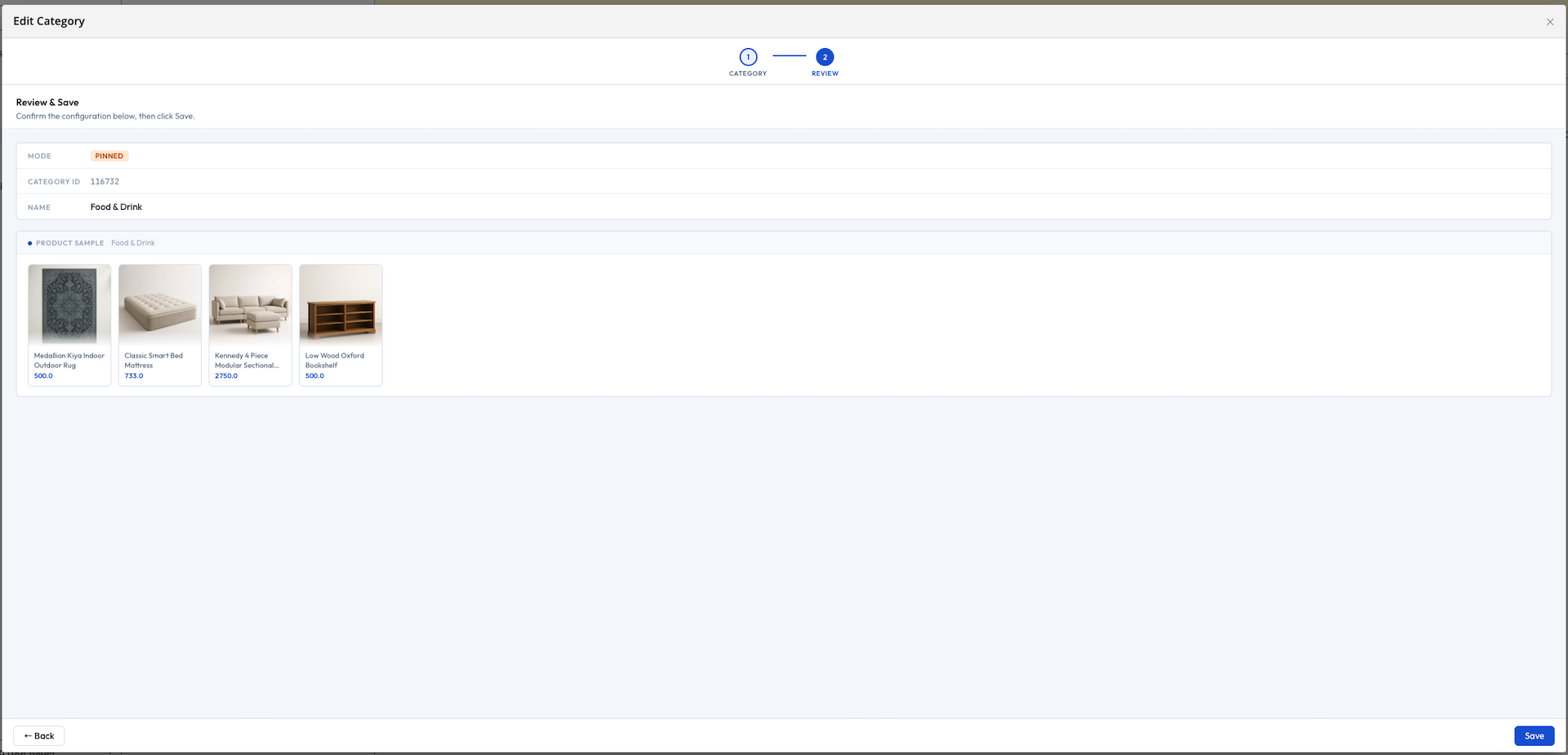

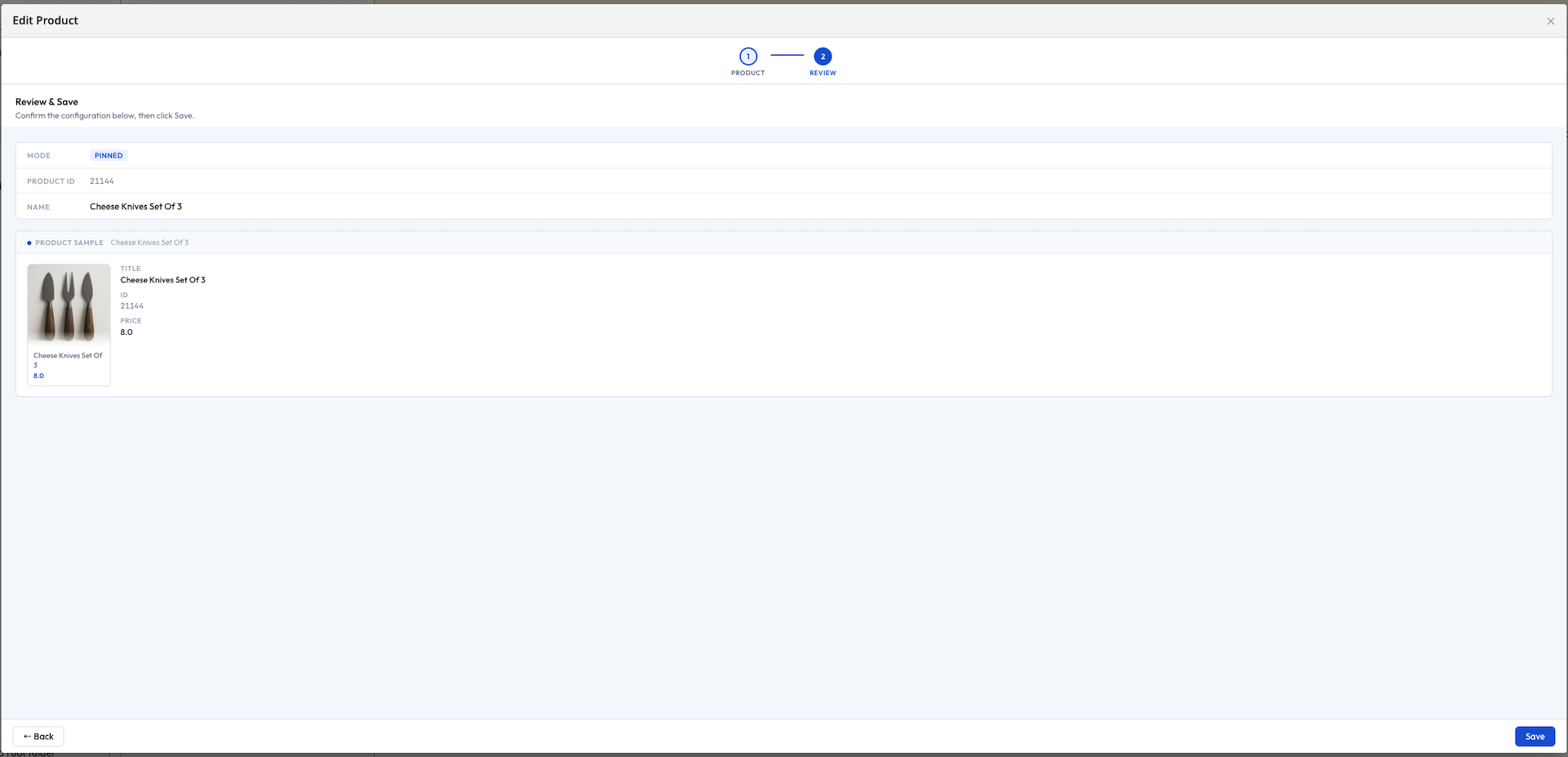

Step 2 shows a review screen: a live product/category card for Pinned selections, or a short explanation of the runtime URL behavior for Dynamic mode.

Runtime enforcement: if a component's document is left unconfigured, it renders nothing and Channel Manager preview shows a configuration prompt. If a Dynamic-mode document finds no matching URL parameter, it also renders nothing, with a preview-only warning - production visitors simply see an empty slot, never an error page.

The product picker

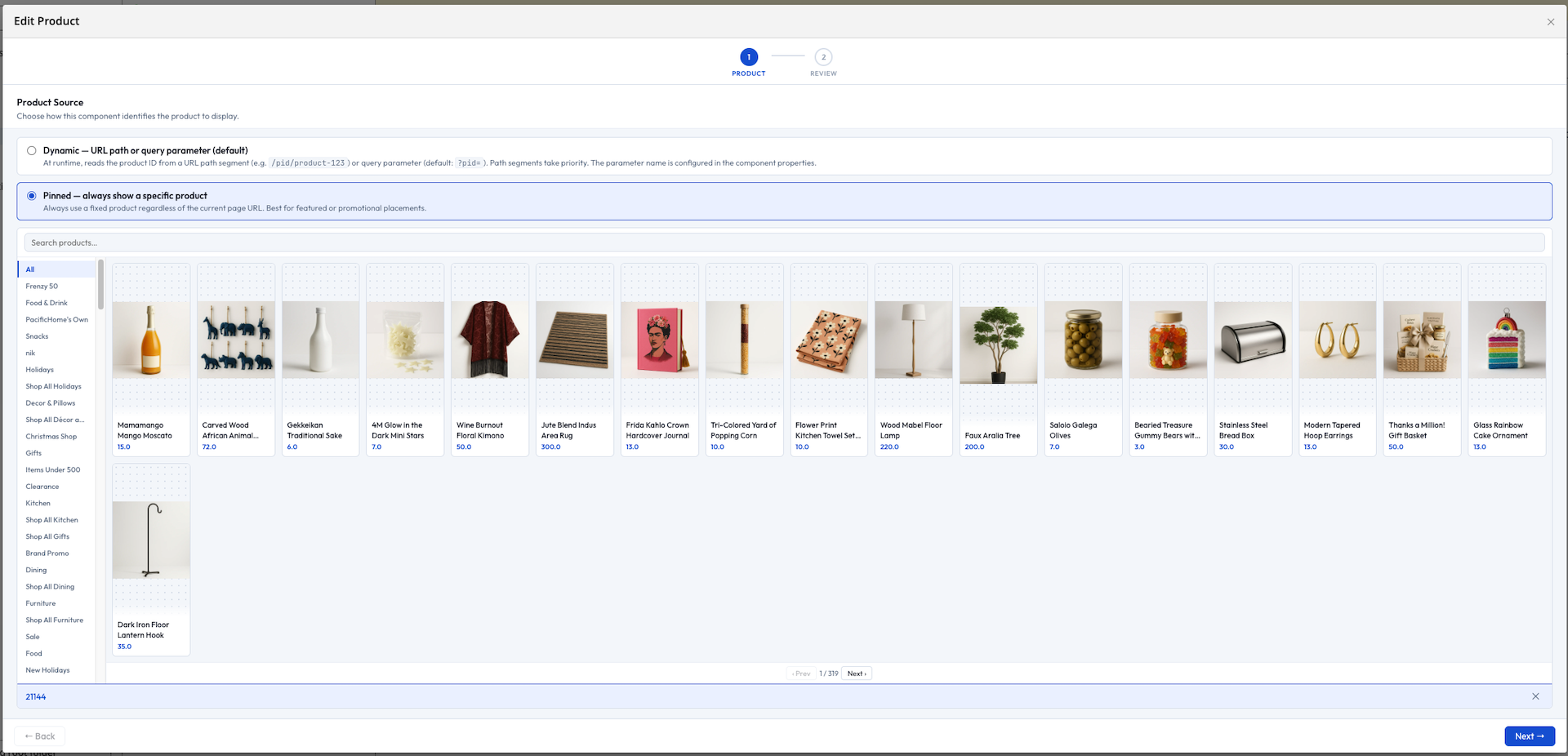

The product picker is the search interface used by both the product wizard and the "Pinned" product-recommendation flow.

Editors can:

• Browse by category using the sidebar, or filter the category list itself by name or ID
• Search by keyword using the top search bar
• Click a product card to highlight it (its ID and title appear in the footer)
• Confirm with Select →, or discard with Cancel

The picker only ever stores a single product ID string - never price, stock, or image data - so that information is always fetched fresh at render time rather than going stale in the CMS.

The category picker

The category picker is the equivalent search interface for categories, used by the category wizard and by "Pinned" category-recommendation widgets.

Live preview fields

Several document types include a small inline preview field alongside their wizard, so editors can see the effect of their choice without saving the document first:

These preview fields update immediately when the picker or wizard above them changes selection - there is no need to save the document first to see the result.

Adding a picker to your own document type

If you have a custom document type that should let editors reference a Discovery product, add an Open UI string field pointing at the product picker extension:

/my-product-ref:
  jcr:primaryType: frontend:plugin
  caption: 'Featured Product'
  field: 'myns:productId'
  plugin.class: 'org.onehippo.cms7.frontend.plugin.field.OpenUiStringFieldPlugin'
  uiExtension: 'discoveryProductPicker'
  wicket.id: '${cluster.id}.field'

The field stores the plain product ID string. Read it in your own HST code and use it however your integration needs - for example, as the contextProductId on a recommendation component, or to look up full product details from your commerce system at render time.

Troubleshooting
