Discovery Recommendations and Visual Search

Recommendation widgets and visual (image) search are both powered by Discovery's v2 Pathways API, and both are configured largely by content editors rather than developers. This page covers the widget document types, the wizard editors used to configure them, and how to enable image-based search.

ON THIS PAGE

• v1 vs. v2 - automatic version selection
• Recommendation document types
• Placing a recommendation component
• Visual search

v1 vs. v2 - automatic version selection

The plugin supports two Discovery recommendation APIs, and selects between them automatically:

• v1 (discoverySearchAPI) - used when no authKey is configured.
• v2 Pathways (discoveryPathwaysAPI) - used automatically as soon as authKey is configured.

There is no configuration flag to set - the presence of authKey (via BRXDIS_AUTH_KEY, -Dbrxdis.authKey, the global config node, or a per-channel discoveryAuthKeyEnvVar override) is the switch. See Configuration.

Visual search requires v2 - it has no v1 equivalent.

Recommendation document types

Each recommendation widget is configured as a JCR document, authored through a purpose-built wizard rather than raw parameter fields:

The 3-step wizard

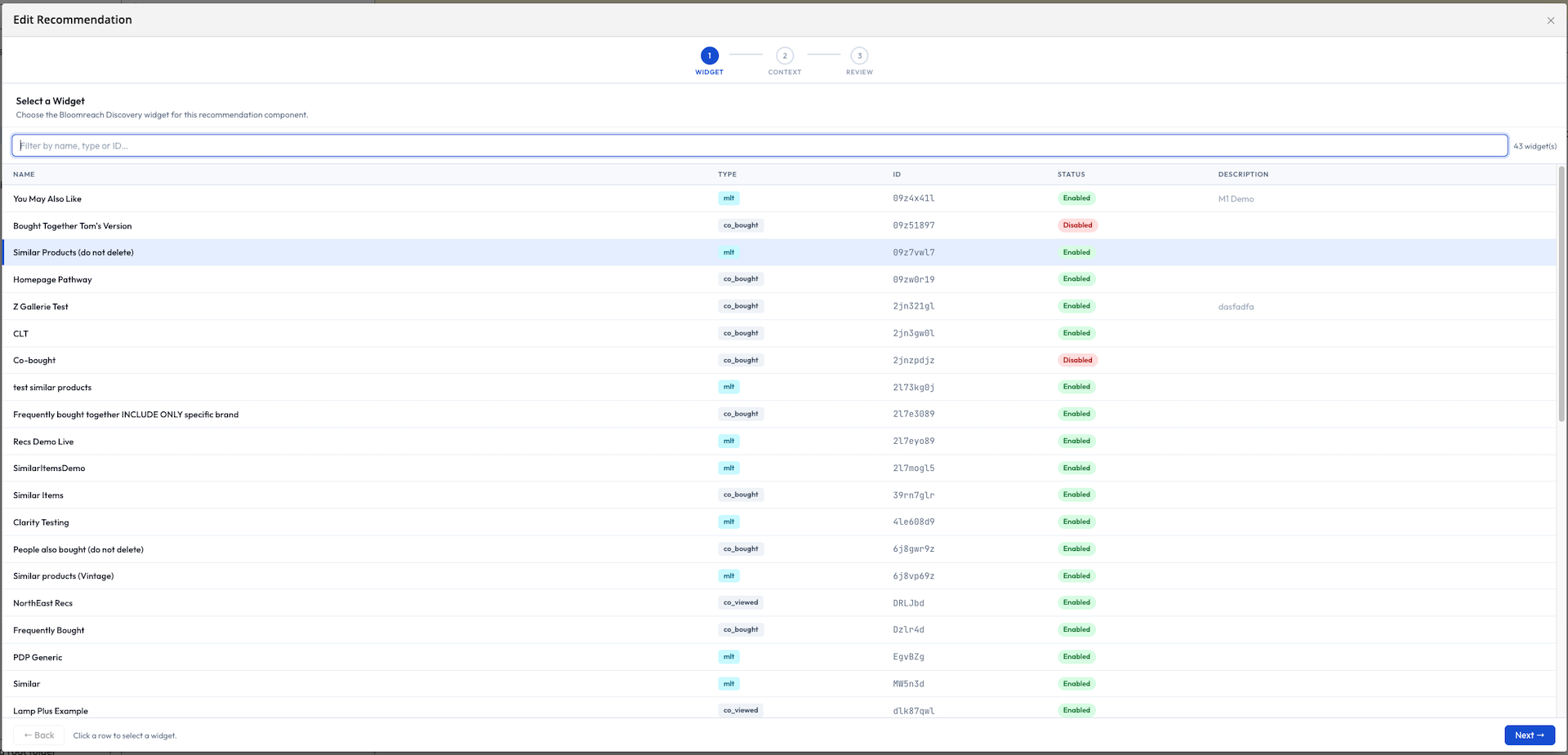

1. Widget - choose from the recommendation widgets configured for your Discovery account. The list is automatically filtered to the widget types relevant to the document type you're editing.

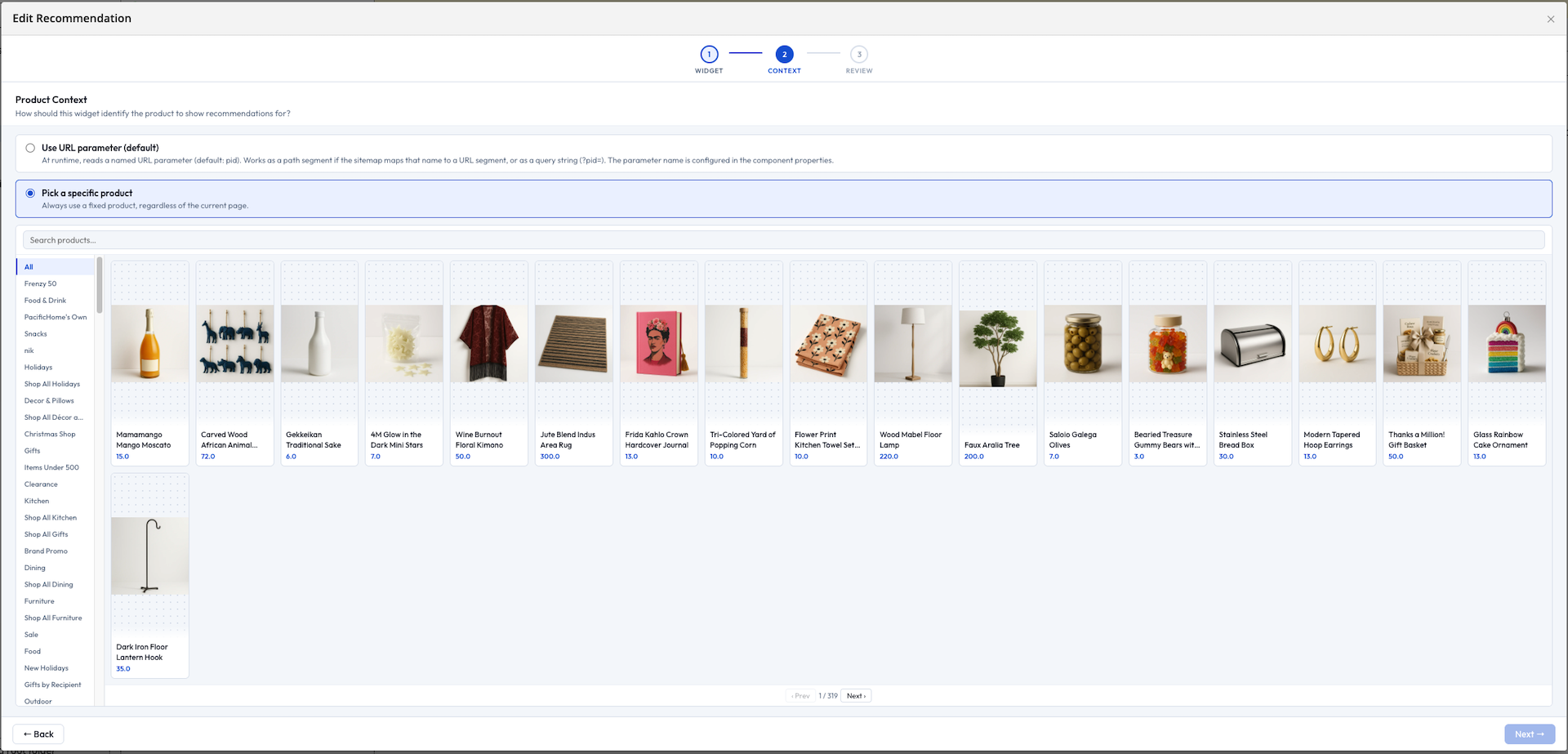

2. Context (product and category widgets only) - choose whether the widget is always tied to a specific product/category ("Pinned"), or reads the current page's product/category ID from the URL at render time ("Dynamic"). Global and personalized widgets skip this step.

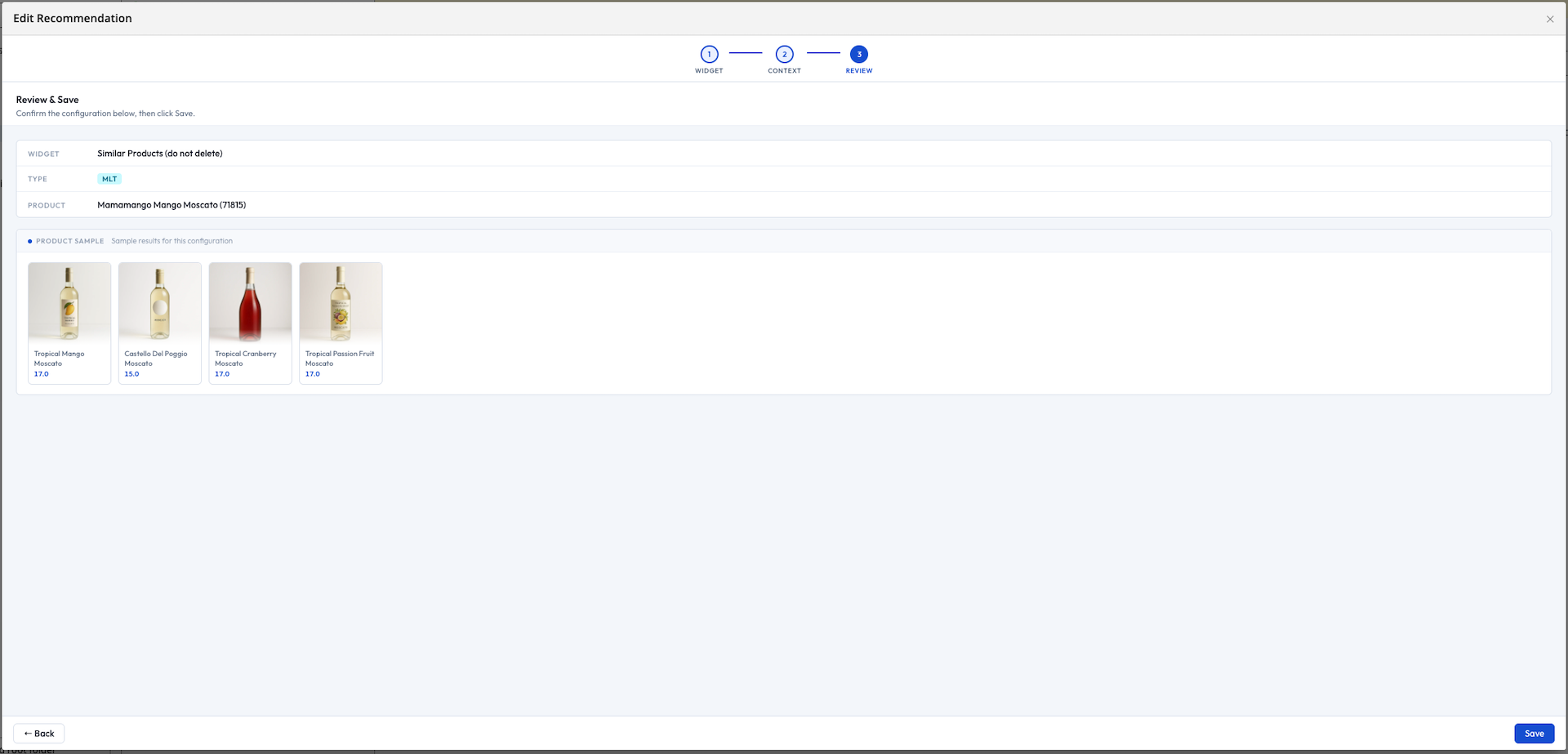

3. Review - a summary of the chosen configuration with a live thumbnail preview of what the widget will show.



Editors can test a Dynamic-mode widget during review by entering a sample product or category ID - this test value only drives the preview and is never saved.

Placing a recommendation component

See Component Parameters for the shared parameter table. Each component's document field points to the widget configuration authored through the wizard above - the component itself needs no other setup.

Example: a "Similar Items" carousel on a product detail page. Place DiscoveryProductDetailComponent and DiscoveryProductRecommendationComponent on the same page, both left in Dynamic mode. Navigating to a product with ?pid=SKU-123 in the URL feeds both components automatically - no extra wiring needed.

Visual search

Visual search lets a shopper upload a photo instead of typing keywords, and see products that visually match it.

Enabling it

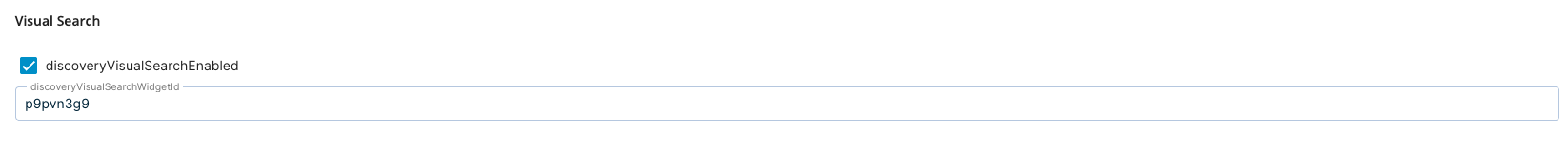

Visual search is a per-channel setting, configured in Channel Manager under Channel Settings → Visual Search:

If enabled without a widget ID, the plugin logs a warning and falls back to ordinary keyword search - visitors never see a broken page.

No component parameters are needed - the same DiscoverySearchInputComponent and DiscoverySearchGridComponent used for keyword search also handle visual search automatically.

How it works

1. A shopper selects or takes a photo.
2. The image is uploaded to a server-side endpoint that the plugin exposes - Discovery credentials never reach the browser.
3. The plugin forwards the image to Discovery and receives back an image reference ID.
4. The shopper is redirected to the results page, which detects the image reference and calls Discovery's visual search API directly.
5. Matching products are returned in the same product grid used for keyword search (with facets and pagination unavailable for image-based results, since Discovery does not return them for this query type).

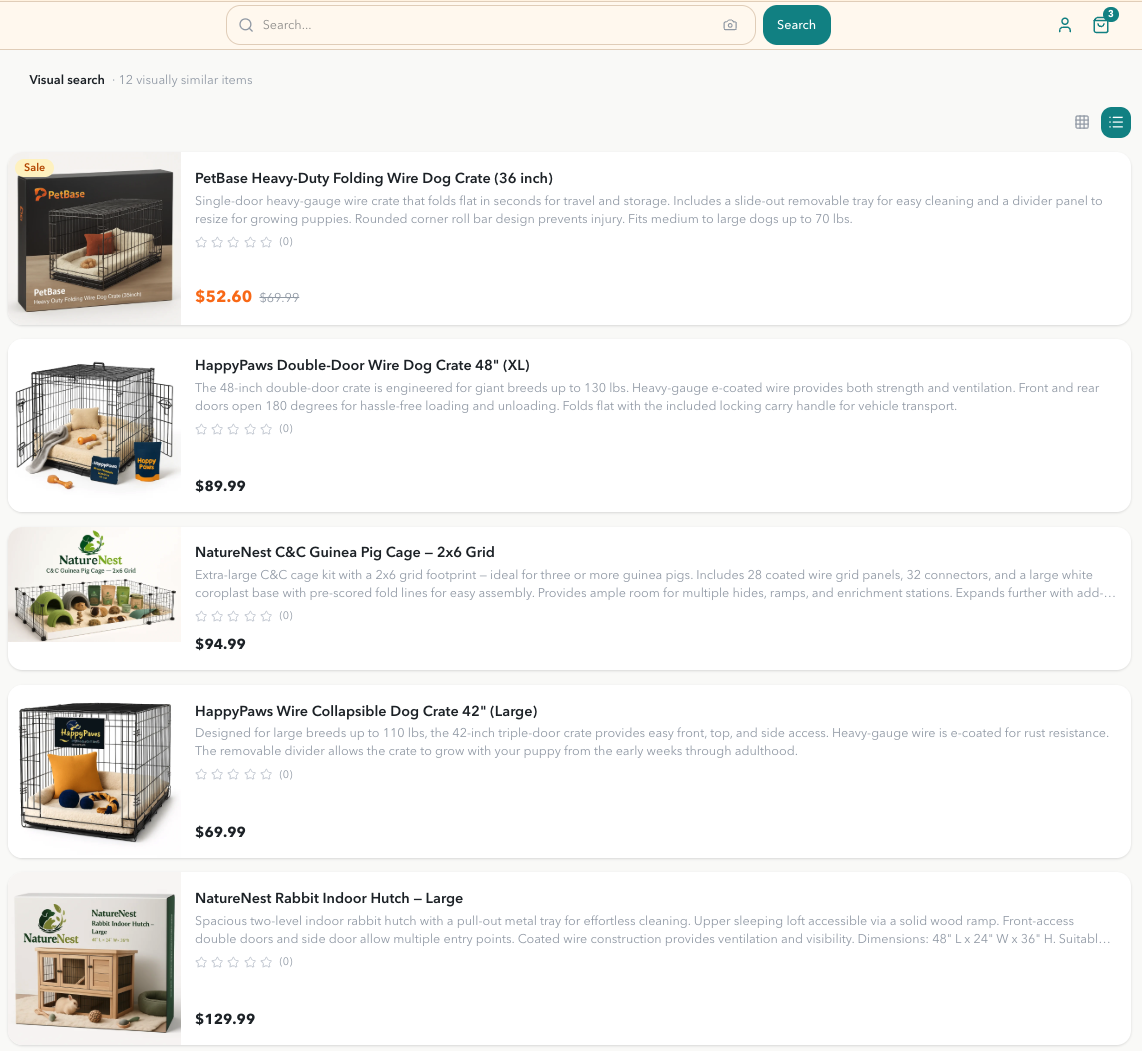

Example visual look:

Visual search mount placement

The plugin's visual search endpoints must be reachable through an HST mount nested under the channel mount that carries the Discovery channel settings - this is what lets the endpoint resolve the correct per-channel credentials.

/commerce:
  jcr:primaryType: hst:mount
  hst:mountpoint: /hst:site/hst:sites/commerce
  hst:namedpipeline: resourceapi
  /_brxdis-api:
    jcr:primaryType: hst:mount
    hst:ismapped: false
    hst:types: [rest]
    hst:namedpipeline: BrxdisVisualSearchPipeline

Do not mount this at the host root or as a sibling of your channels - without a channel in its parent chain, the endpoint cannot resolve per-channel credentials and silently falls back to the global configuration.
